Liste FX airguns

Cocking system 	Forward positioned sidelever
Magazine type 	Removable high capacity

22 shot when Cal .177

18 shot when Cal .22

16 shot when Cal .25

13 shot when Cal .30
Stock 	Synthetic with soft-touch surface.
Barrel 	FX Smooth Twist X Superior Liner

*all except caliber 4,5 which use STX.

Compact:

4,5 (.177) Length 500 mm

5,5 (.22) Length 500 mm

6,35 (.25) Length 500 mm

7,62 (.30) Length 500 mm

Sniper:

5,5 (.22) Length 700 mm

6,35 (.25) Length 700 mm

7,62 (.30) Length 700 mm
Fill pressure 	230 Bar (3300 psi)
Safety 	Manual
Optics 	11 mm dovetail scope mount

(pica-tinny rail available as upgrade and accessory)
Shot Capacity 	Compact:
4,5 (.177) ≈ 120 shots @ 20ft/lbs. ≈ shots @ 12ft/lbs TBA
5,5 (.22): ≈ 60 shots @ 30ft/lbs. ≈ shots @ 12ft/lbs TBA
6,35 (.25): ≈ 35 shots @ 55ft/lbs.
7,62 (.30): ≈ 18 shots @ 67ft/lbs.Sniper:
5,5 (.22): ≈ 90 shots @ 34ft/lbs.
6,35 (.25): ≈ 55 shots @ 47ft/lbs.
7,62 (.30): ≈ 35 shots @ 75ft/lbs.
Muzzle 	Built-In Shroud system with ½” UNF thread

(variations may occur depending on country).
Pressure gauge 	One for airtube pressure

One for regulator pressure
Trigger 	Adjustable match trigger
Energy 	Compact:

4,5 (.177): up to 27 Joule – 20ft/lbs.

5,5 (.22): up to 55 Joule – 40ft/lbs.

6,35 (.25): up to 75 Joule – 55ft/lbs.

7,62 (.30): up to 95 Joule – 70ft/lbs.

Sniper:

5,5 (.22): up to 68 Joule – 50ft/lbs.

6,35 (.25): up to 95 Joule – 70ft/lbs.

7,62 (.30): up to 115 Joule – 85ft/lbs.
Air capacity 	Compact: 230 cc

Sniper: 300 cc
Air cylinder

Not removable
Length 	Compact: 675 mm

Sniper: 790 mm
Charging 	Quick charge system MkI
Weight 	Compact: 2,8kg

Sniper: 3kg
More features 	Power adjuster (hammer spring tension),

Interchangable Caliber System,

AMP Regulator – Externally Adjustable,
Placeholder Image

CROWN MKII Laminate

LAMINATE

1750,00€

Cocking system 	Sidelever
Magazine type 	Removable high capacity

22 shot when Cal .177

18 shot when Cal .22

16 shot when Cal .25

13 shot when Cal .30
Stock 	Laminate available in following colours:



Forest Green, Yellow Black, Black Pepper.

– Ambidextrous

– Adjustable recoil-pad

– Thumbhole

– Adjustable cheek-piece



Walnut

– Ambidextrous

– Adjustable recoil-pad

– Thumbhole



GRS Green Mountain Laminate

– Adjustable cheek piece

– Adjustable recoil-pad

– Tool-less adjustments

– Ergonomic grip



Synthetic with soft-touch surface

– Ambidextrous

– Adjustable recoil-pad

– Thumbhole


Caliber 	4,5 (.177)

5,5 (.22)

6,35 (.25)

7,62 (.30)
Barrel 	FX Smooth Twist X Superior Liner

*all except caliber 4,5 which use STX.

Compact: Length 380 mm

(available were continuum is not possible)

4,5 (.177)

5,5 (.22)

6,35 (.25)

7,62 (.30)

Standard: Length 500 mm

4,5 (.177)

5,5 (.22)

6,35 (.25)

7,62 (.30)

Plus: Length 600 mm

5,5 (.22)

6,35 (.25)

7,62 (.30)

Sniper: Length 700 mm

5,5 (.22)

6,35 (.25)

7,62 (.30)
Shot capacity 	4,5 (.177): 200 shots approx.

5,5 (.22): 145 shots approx.

6,35 (.25): 110 shots approx.

7,62 (.30): 45 shots approx.
Fill pressure 	Max 250 bar (3600 psi)

*all except VP Edition which Max is
230 Bar (3300 psi)
Safety 	Switch style
Optics 	Picatinny scope mount With 20 MOA angle
Muzzle 	Built-In Shroud

(variations may occur depending on country).
Pressure gauge 	Dual Manometers
One for airtube pressure
One for regulator pressure
Trigger 	Adjustable Match Trigger
(variations may occur)
Velocity 	4,5 (.177): 300 m/s • 1000 ft/s

5,5 (.22): 280 m/s • 920 ft/s

6,35 (.25): 270 m/s • 900 ft/s

7,62 (.30): 265 m/s • 870 ft/s



Note: above figures is factory recommended FAC Power output, but can be turned higher/lower if needed.
Energy 	4,5 (.177): up to 38 J • 28 ft/lbs

5,5 (.22): up to 73 J • 54 ft/lbs

6,35 (.25): up to 88 J • 65 ft/lbs

7,62 (.30): up to 123 J • 75 ftlbs



Note: Above figures is achieved with maximum length of barrel and in some cases heavy ammunition.
Shorter barrel will produce less energy then the above.
Air capacity 	480 cc
Air cylinder 	Removable
Carbon fiber wrapped
*all except VP version which is aluminium
Length 	Approximately 450mm + barrel length.
Weight 	Synthetic: 2,8 kg – 6.2 lbs
Walnut: 3 kg – 6.5 lbs
Laminate: 3,1 kg – 6.8 lbs
GRS Laminate: 4,5 kg – 9.6 lbs
Charging 	Foster Quick Disconnec
More features 	Interchangeable Barrel Liner System (with changeable core barrel liner to obtain various twist rates).



Dual External Power.



Adjusters (hammer spring tension and airflow).



AMP Externally adjustable pressure regulator.



Interchangeable Caliber System.

CROWN MKII Synthétic

Synthétic

1345,00€

Cocking system 	Sidelever
Magazine type 	Removable high capacity

22 shot when Cal .177

18 shot when Cal .22

16 shot when Cal .25

13 shot when Cal .30
Stock 	Synthetic
Caliber 	4,5 (.177)

5,5 (.22)

6,35 (.25)

7,62 (.30)
Barrel 	FX Smooth twist X

Match grade

Free floating

Length 4,5 (.177): 500 mm

Length 5,5 (.22): 500 mm

Length 6,35 (.25): 600 mm

Length 7,62 (.30): 600 mm
Fill pressure 	230 Bar • 3300 Psi
Safety 	Manual
Optics 	11 mm dovetail scope mount
Muzzle 	½” UNF
Pressure gauge 	One for airtube pressure

One for regulator pressure
Trigger 	Adjustable match trigger
Velocity 	4,5 (.177): 295 m/s • 940 ft/s

5,5 (.22): 280 m/s • 920 ft/s

6,35 (.25): 270 m/s • 890 ft/s

7,62 (.30) TBA
Energy 	4,5 (.177): 24 J • 18 ft/lbs

5,5 (.22): 41 J • 30 ft/lbs

6,35 (.25): 60 J • 45 ft/lbs

7,62 (.30) TBA
Air capacity 	4,5 (.177) 220 cc

5,5 (.22) 220 cc

6,35 (.25) 290 cc

7,62 (.30) 290 cc
Length 	4,5 (.177): 720 mm

5,5 (.22): 720 mm

6,35 (.25): 835 mm

7,62 (.30): 835 mm
Weight 	Synthetic: 2,4 kg
Charging 	Quick charge system
More features 	Interchangeable Barrel Liner System (with changeable core barrel liner to obtain various twist rates).

AMP Externally adjustable pressure regulator.

DREAMLINE BULLPUP

DREAMLINE BULLPUP et DREAMLINE BULLPUP synthétic bottle

1135,00€

Cocking system 	Sidelever
Magazine type 	Removable high capacity

22 shot when Cal .177

18 shot when Cal .22

16 shot when Cal .25

13 shot when Cal .30
Stock 	Synthetic, Quick release rear stock.

Ambidextrous
Grip 	AR15 (hogue pistol grip included)
Caliber 	4,5 (.177)

5,5 (.22)

6,35 (.25)

7,62 (.30)
Barrel 	FX Smooth twist X

Match grade

Free floating

length 4,5 (.177): 500 mm

length 5,5 (.22): 500 mm

length 6,35 (.25): 600 mm

length 7,62 (.30): 600 mm
Fill pressure 	230 Bar • 3300 Psi
Safety 	Manual
Optics 	11 mm dovetail scope mount
Muzzle 	½” UNF
Pressure gauge 	One for airtube pressure

One for regulator pressure
Trigger 	Adjustable match trigger
Velocity 	4,5 (.177): 295 m/s • 940 ft/s

5,5 (.22): 275 m/s • 910 ft/s

6,35 (.25): 270 m/s • 890 ft/s

7,62 (.30) TBA
Energy 	4,5 (.177): 24 J • 18 ft/lbs

5,5 (.22): 41 J • 30 ft/lbs

6,35 (.25): 65 J • 47 ft/lbs

7,62 (.30) TBA
Air capacity 	4,5 (.177) 220 cc

5,5 (.22) 220 cc

6,35 (.25) 250 cc

7,62 (.30) 250 cc
Length 	4,5 (.177): 960 mm

5,5 (.22): 960 mm

6,35 (.25): 1060 mm

7,62 (.30): 1060mm
Weight 	2,6 kg
Charging 	Quick charge system
More features 	Interchangeable Barrel Liner System (with changeable core barrel liner to obtain various twist rates).

AMP Externally adjustable pressure regulator.

DREAMLINE LITE

Lite

1035,00€

FX Dreamline Classic Walnut

FX Dreamline Classic Walnut

995,00€

FX Airguns
Status	New
Calibre	5.5 mm / .22, 6.35 mm / .25, 7.62 mm / .30
Power source	PCP
Fill pressure (bar / psi)	230 / 3336
Energy (Joule / ft.lb)	43 / 31.7, 63 / 46.5, 101 / 74.5
Cocking system	Side lever
Magazine Capacity	14, 16, 18
Safety	Yes
Weight (gram)	2550 - 5.5 mm / .22
2950 - 6.35 mm / .25
2950 - 7.62 mm / .30
Barrel Length (mm)	500 - 5.5 mm / .22
600 - 6.35 mm / .25
600 - 7.62 mm / .30
Total length (mm)	964-995 - 5.5 mm / .22
1080-1111 - 6.35 mm / .25
1080-1111 - 7.62 mm / .30
Sights	No open sights
Riflescope included	No
Mounting rail type	Dovetail (11mm)
Stock	Ambidextrous
Stock material	Wood
Extras	Fill probe, Magazine

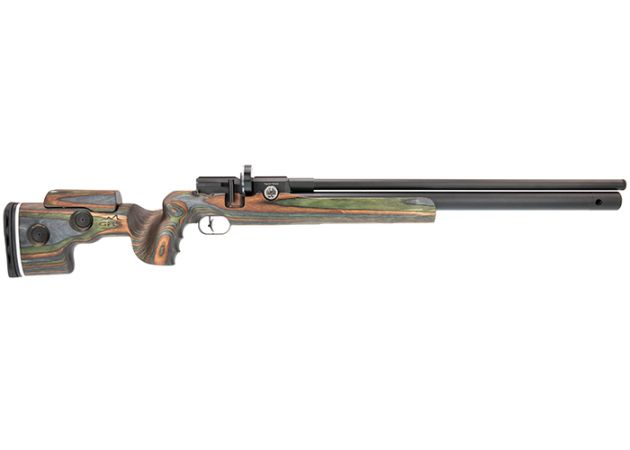

FX Dreamline GRS Green

Green Mountain Camo

1495,00€

COCKING SYSTEM	Sidelever
MAGAZINE TYPE	Removable high capacity
22 shot when Cal .177

18 shot when Cal .22

16 shot when Cal .25

13 shot when Cal .30

STOCK	AR15 Ready (not included)
GRIP	AR15 (hogue pistol grip included)
CALIBER	4,5 (.177)
5,5 (.22)

6,35 (.25)

7,62 (.30)

BARREL	FX Smooth twist X
Match grade

Free floating

Length 4,5 (.177): 500 mm

Length 5,5 (.22): 500 mm

Length 6,35 (.25): 600 mm

Length 7,62 (.30): 600 mm

FILL PRESSURE	230 Bar • 3300 Psi
SAFETY	Manual
OPTICS	Picatinny
MUZZLE	½” UNF
PRESSURE GAUGE	One for airtube pressure
One for regulator pressure

TRIGGER	Adjustable match trigger
VELOCITY	4,5 (.177): 295 m/s • 940 ft/s
5,5 (.22): 280 m/s • 920 ft/s

6,35 (.25): 270 m/s • 890 ft/s

7,62 (.30) TBA

ENERGY	4,5 (.177): 24 J • 18 ft/lbs
5,5 (.22): 41 J • 30 ft/lbs

6,35 (.25): 60 J • 45 ft/lbs

7,62 (.30) TBA

AIR CAPACITY	4,5 (.177) 220 cc
5,5 (.22) 220 cc

6,35 (.25) 290 cc

7,62 (.30) 290 cc

LENGTH	Approximately 700-800mm without stock
WEIGHT	Approximately 2,1 kg without stock
CHARGING	Quick charge system
MORE FEATURES	Interchangeable Barrel Liner System (with changeable core barrel liner to obtain various twist rates)
AMP Externally adjustable pressure regulator

FX Dreamline Tactical Compact

FX Dreamline Tactical Compact

1095,00€

Cocking system 	 Right hand positioned sidelever with an ambidextrous mount for lefthanded shooters.
Magazine type 	Removable high capacity
38 shot when Cal .177
28 shot when Cal .22
28 shot when Cal .25
23 shot when Cal .30
18 shot when Cal .35
Stock 	AR15 style grip
Adjustable recoilpad (vertically)
Calibre

4,5 (.177)

5,5 (.22)

6,35 (.25)

7,62 (.30)

9,00 (.35)
Barrel

Smooth Twist X Superior Liner
Match grade
Free floating

Compact:

4,5 (.177) Length 500 mm
5,5 (.22) Length 500 mm
6,35 (.25) Length 500 mm
7,62 (.30) Length 500 mm

Standard:

4,5 (.177) Length 600 mm
5,5 (.22) Length 600 mm *500mm if sub 12ft for UK.
6,35 (.25) Length 600 mm
7,62 (.30) Length 600 mm

Sniper:

5,5 (.22) Length 700 mm
6,35 (.25) Length 700 mm
7,62 (.30) Length 700 mm

Cal .35:

9,00 (.35) Length 800 mm
Shot capacity 	4,5 (.177) ≈ up to 375 shots
5,5 (.22) ≈ up to 330 shots
6,35 (.25): ≈ up to 160 shots
7,62 (.30): ≈ up to 105 shots
9,00 (.35): ≈ up to 45 shots
Fill pressure 	Max 250 bar (3625 psi)
Safety 	Switch style
Optics

Picatinny rail with built in 20 MOA angle
Muzzle 	Built-In Shroud system with additional moderator. (variations may occur depending on country).

Detachable muzzle.
Pressure gauge

Tripple pressure gauges:

Airtube pressure WIKA
First regulator pressure
Second regulator pressure WIKA
Trigger 	Adjustable Match Trigger

Trigger blade can be adjusted in reach, height and rotated to set the blade in an angle.
Velocity 	N/A
Energy 	4,5 (.177): up to 47 J – 35 ft/lbs
5,5 (.22): up to 107 J – 79 ft/lbs
6,35 (.25): up 120 J – 89 ft/lbs
7,62 (.30): up to 168 J – 124 ft/lbs
9,00 (.35: up to 211 J – 156 ft/lbs

Note: above figures are maximum FAC Power output using slug ammunition and slug powerkit.
Air capacity 	Compact: 300cc
Standard: 480 cc
Sniper: 580cc
9mm (.35): 580cc
Air cylinder

Carbon fiber wrapped air tank
Length 	Compact: 640mm – 25″
Standard: 860mm – 34″
Sniper: 1000mm – 39″
9mm (.35): 1120mm – 44″
Weight 	Compact: 2,8kg – 6,10lbs
Standard: 3,1kg – 6,85 lbs
Sniper: 3,25kg – 7,15 lbs
9mm (.35): 3,35kg – 7,35 lbs
Charging 	Foster Quick Disconnect
More features 	Dual AMP Regulators – Externally Adjustable

Quick Tune System (micro and macro adjustment of hammerspring tension)

Valve adjuster (valveflow tuning)

Interchangable Caliber System

Multiple Accessory rails (picatinny) sides and bottom

Accessory spot to mount angled pressure gauge
Plenum 	Power Plenum 720 (72cc Volume) *not available on sub 12ft versions.

FX IMPACT

MKIII

2150,00€

Cocking system 	 Right hand positioned sidelever with an ambidextrous mount for lefthanded shooters.
Magazine type 	Removable high capacity
38 shot when Cal .177
28 shot when Cal .22
28 shot when Cal .25
23 shot when Cal .30
18 shot when Cal .35
Stock 	AR15 style grip
Adjustable recoilpad (vertically)
Calibre

4,5 (.177)

5,5 (.22)

6,35 (.25)

7,62 (.30)

9,00 (.35)
Barrel

Smooth Twist X Superior Liner
Match grade
Free floating

Compact:

4,5 (.177) Length 500 mm
5,5 (.22) Length 500 mm
6,35 (.25) Length 500 mm
7,62 (.30) Length 500 mm

Standard:

4,5 (.177) Length 600 mm
5,5 (.22) Length 600 mm *500mm if sub 12ft for UK.
6,35 (.25) Length 600 mm
7,62 (.30) Length 600 mm

Sniper:

5,5 (.22) Length 700 mm
6,35 (.25) Length 700 mm
7,62 (.30) Length 700 mm

Cal .35:

9,00 (.35) Length 800 mm
Shot capacity 	4,5 (.177) ≈ up to 375 shots
5,5 (.22) ≈ up to 330 shots
6,35 (.25): ≈ up to 160 shots
7,62 (.30): ≈ up to 105 shots
9,00 (.35): ≈ up to 45 shots
Fill pressure 	Max 250 bar (3625 psi)
Safety 	Switch style
Optics

Picatinny rail with built in 20 MOA angle
Muzzle 	Built-In Shroud system with additional moderator. (variations may occur depending on country).

Detachable muzzle.
Pressure gauge

Tripple pressure gauges:

Airtube pressure WIKA
First regulator pressure
Second regulator pressure WIKA
Trigger 	Adjustable Match Trigger

Trigger blade can be adjusted in reach, height and rotated to set the blade in an angle.
Velocity 	N/A
Energy 	4,5 (.177): up to 47 J – 35 ft/lbs
5,5 (.22): up to 107 J – 79 ft/lbs
6,35 (.25): up 120 J – 89 ft/lbs
7,62 (.30): up to 168 J – 124 ft/lbs
9,00 (.35: up to 211 J – 156 ft/lbs

Note: above figures are maximum FAC Power output using slug ammunition and slug powerkit.
Air capacity 	Compact: 300cc
Standard: 480 cc
Sniper: 580cc
9mm (.35): 580cc
Air cylinder

Carbon fiber wrapped air tank
Length 	Compact: 640mm – 25″
Standard: 860mm – 34″
Sniper: 1000mm – 39″
9mm (.35): 1120mm – 44″
Weight 	Compact: 2,8kg – 6,10lbs
Standard: 3,1kg – 6,85 lbs
Sniper: 3,25kg – 7,15 lbs
9mm (.35): 3,35kg – 7,35 lbs
Charging 	Foster Quick Disconnect
More features 	Dual AMP Regulators – Externally Adjustable

Quick Tune System (micro and macro adjustment of hammerspring tension)

Valve adjuster (valveflow tuning)

Interchangable Caliber System

Multiple Accessory rails (picatinny) sides and bottom

Accessory spot to mount angled pressure gauge
Plenum 	Power Plenum 720 (72cc Volume) *not available on sub 12ft versions.

FX IMPACT Compact

MKIII

2115,00€

"Cocking system 	 Right hand positioned sidelever with an ambidextrous mount for lefthanded shooters.
Magazine type 	Removable high capacity
38 shot when Cal .177
28 shot when Cal .22
28 shot when Cal .25
23 shot when Cal .30
18 shot when Cal .35
Stock 	AR15 style grip
Adjustable recoilpad (vertically)
Calibre

4,5 (.177)

5,5 (.22)

6,35 (.25)

7,62 (.30)

9,00 (.35)
Barrel

Smooth Twist X Superior Liner
Match grade
Free floating

Compact:

4,5 (.177) Length 500 mm
5,5 (.22) Length 500 mm
6,35 (.25) Length 500 mm
7,62 (.30) Length 500 mm

Standard:

4,5 (.177) Length 600 mm
5,5 (.22) Length 600 mm *500mm if sub 12ft for UK.
6,35 (.25) Length 600 mm
7,62 (.30) Length 600 mm

Sniper:

5,5 (.22) Length 700 mm
6,35 (.25) Length 700 mm
7,62 (.30) Length 700 mm

Cal .35:

9,00 (.35) Length 800 mm
Shot capacity 	4,5 (.177) ≈ up to 375 shots
5,5 (.22) ≈ up to 330 shots
6,35 (.25): ≈ up to 160 shots
7,62 (.30): ≈ up to 105 shots
9,00 (.35): ≈ up to 45 shots
Fill pressure 	Max 250 bar (3625 psi)
Safety 	Switch style
Optics

Picatinny rail with built in 20 MOA angle
Muzzle 	Built-In Shroud system with additional moderator. (variations may occur depending on country).

Detachable muzzle.
Pressure gauge

Tripple pressure gauges:

Airtube pressure WIKA
First regulator pressure
Second regulator pressure WIKA
Trigger 	Adjustable Match Trigger

Trigger blade can be adjusted in reach, height and rotated to set the blade in an angle.
Velocity 	N/A
Energy 	4,5 (.177): up to 47 J – 35 ft/lbs
5,5 (.22): up to 107 J – 79 ft/lbs
6,35 (.25): up 120 J – 89 ft/lbs
7,62 (.30): up to 168 J – 124 ft/lbs
9,00 (.35: up to 211 J – 156 ft/lbs

Note: above figures are maximum FAC Power output using slug ammunition and slug powerkit.
Air capacity 	Compact: 300cc
Standard: 480 cc
Sniper: 580cc
9mm (.35): 580cc
Air cylinder

Carbon fiber wrapped air tank
Length 	Compact: 640mm – 25″
Standard: 860mm – 34″
Sniper: 1000mm – 39″
9mm (.35): 1120mm – 44″
Weight 	Compact: 2,8kg – 6,10lbs
Standard: 3,1kg – 6,85 lbs
Sniper: 3,25kg – 7,15 lbs
9mm (.35): 3,35kg – 7,35 lbs
Charging 	Foster Quick Disconnect
More features 	Dual AMP Regulators – Externally Adjustable

Quick Tune System (micro and macro adjustment of hammerspring tension)

Valve adjuster (valveflow tuning)

Interchangable Caliber System

Multiple Accessory rails (picatinny) sides and bottom

Accessory spot to mount angled pressure gauge
Plenum 	Power Plenum 720 (72cc Volume) *not available on sub 12ft versions."

FX IMPACT Sniper

MKIII

2220,00€

Cocking system 	Forward positioned sidelever
Magazine type 	Removable high capacity

22 shot when Cal .177

18 shot when Cal .22

16 shot when Cal .25

13 shot when Cal .30
Stock 	Synthetic with soft-touch surface.
Barrel 	FX Smooth Twist X Superior Liner

*all except caliber 4,5 which use STX.

Compact:

4,5 (.177) Length 500 mm

5,5 (.22) Length 500 mm

6,35 (.25) Length 500 mm

7,62 (.30) Length 500 mm

Sniper:

5,5 (.22) Length 700 mm

6,35 (.25) Length 700 mm

7,62 (.30) Length 700 mm
Fill pressure 	230 Bar (3300 psi)
Safety 	Manual
Optics 	11 mm dovetail scope mount

(pica-tinny rail available as upgrade and accessory)
Shot Capacity 	Compact:
4,5 (.177) ≈ 120 shots @ 20ft/lbs. ≈ shots @ 12ft/lbs TBA
5,5 (.22): ≈ 60 shots @ 30ft/lbs. ≈ shots @ 12ft/lbs TBA
6,35 (.25): ≈ 35 shots @ 55ft/lbs.
7,62 (.30): ≈ 18 shots @ 67ft/lbs.Sniper:
5,5 (.22): ≈ 90 shots @ 34ft/lbs.
6,35 (.25): ≈ 55 shots @ 47ft/lbs.
7,62 (.30): ≈ 35 shots @ 75ft/lbs.
Muzzle 	Built-In Shroud system with ½” UNF thread

(variations may occur depending on country).
Pressure gauge 	One for airtube pressure

One for regulator pressure
Trigger 	Adjustable match trigger
Energy 	Compact:

4,5 (.177): up to 27 Joule – 20ft/lbs.

5,5 (.22): up to 55 Joule – 40ft/lbs.

6,35 (.25): up to 75 Joule – 55ft/lbs.

7,62 (.30): up to 95 Joule – 70ft/lbs.

Sniper:

5,5 (.22): up to 68 Joule – 50ft/lbs.

6,35 (.25): up to 95 Joule – 70ft/lbs.

7,62 (.30): up to 115 Joule – 85ft/lbs.
Air capacity 	Compact: 230 cc

Sniper: 300 cc
Air cylinder

Not removable
Length 	Compact: 675 mm

Sniper: 790 mm
Charging 	Quick charge system MkI
Weight 	Compact: 2,8kg

Sniper: 3kg
More features 	Power adjuster (hammer spring tension),

Interchangable Caliber System,

AMP Regulator – Externally Adjustable,
Placeholder Image

FX Wildcat

MKIII

1255,00€ (sniper)/1225,00€(compact)

Cocking system 	Forward positioned sidelever
Magazine type 	Removable high capacity

22 shot when Cal .177

18 shot when Cal .22

16 shot when Cal .25

13 shot when Cal .30
Stock 	Aluminum chassis

Picatinny accessory rail

Adjustable recoil-pad
Caliber 	4,5 (.177)

5,5 (.22)

6,35 (.25)

7,62 (.30)
Barrel 	FX Smooth Twist X Superior Liner

*all except caliber 4,5 which use STX.

Compact:

4,5 (.177) Length 500 mm

5,5 (.22) Length 500 mm

6,35 (.25) Length 500 mm

7,62 (.30) Length 500 mm

VP Edition:

5,5 (.22) Length 600 mm

6,35 (.25) Length 600 mm

7,62 (.30) Length 600 mm

Sniper:

5,5 (.22) Length 700 mm

6,35 (.25) Length 700 mm

7,62 (.30) Length 700 mm
Shot capacity 	Compact:

4,5 (.177)

≈ 180 shots

5,5 (.22):

≈ 110 shots with 18,1gr pellet @ 860fps

6,35 (.25):

≈ 70 shots with 25,4 pellet @ 895fps

7,62 (.30):

≈ 35 shots with 44,8gr pellet @ 860fps.



Sniper:

5,5 (.22):

≈ 270 shots with 18,1gr pellet @ 860fps

6,35 (.25):

≈ 170 shots with 25,4 pellet @ 895fps

7,62 (.30):

≈ 90 shots with 44,8gr pellet @ 860fps.



VP Edition:

5,5 (.22):

≈ 160 shots with 18,1gr pellet @ 860fps

6,35 (.25):

≈ 100 shots with 25,4 pellet @ 895fps

7,62 (.30):

≈ 55 shots with 44,8gr pellet @ 860fps.
Fill pressure 	Max 250 bar (3600 psi)

*all except VP Edition which Max is

230 Bar (3300 psi)
Safety 	Switch style
Optics 	Picatinny scope mount With 20 MOA angle
Muzzle 	Built-In Shroud system

(variations may occur depending on country).
Pressure gauge 	One for airtube pressure

One for regulator pressure
Trigger 	Adjustable match trigger

Energy 	Compact

4,5 (.177): up to 27 Joule – 20ft/lbs.

5,5 (.22): up to 75 Joule – 55ft/lbs

with 33,9gr pellet@856fps

6,35 (.25): up to 90 Joule – 66ft/lbs

with 43,5gr slug@825fps

7,62 (.30): up to 128 Joule – 95ft/lbs

with 65,5gr slug@810fps



Sniper:

5,5 (.22): up to 96 Joule – 71ft/lbs

with 33,9gr pellet@968fps

6,35 (.25): up to 115 Joule – 85ft/lbs

with 38,5gr slug@995fps

7,62 (.30): up to 157 Joule – 116ft/lbs

with 65,5gr slug@895fps



VP Edition:

5,5 (.22): up to 90 Joule – 67ft/lbs

with 33,9gr pellet@945fps

6,35 (.25): up to 107 Joule – 79ft/lbs

with 38,5gr slug@964fps

7,62 (.30): up to 145 Joule – 107ft/lbs

with 65,5gr slug @859fps



* Maximum muzzle energy obtained using the FX Maverick Slug Power Kit, sold seperately
Air capacity 	Compact: 300 cc

Sniper: 580 cc

VP Edition: 400 cc
Air cylinder 	Removable

Carbon fiber wrapped

*all except VP version which is aluminium
Length 	Compact: 700 mm

VP Edition: 800 mm

Sniper: 915 mm
Weight 	Compact: 2,9 kg

Sniper: 3,3 kg

VP Edition: 3,4 kg
Charging 	Foster Quick Disconnect
More features 	Power adjuster (hammer spring tension),

Interchangable Caliber System,

Dual AMP Regulators, fully adjustable.

Dual side accessory rails.

THE MAVERIC

Compact,VP,Sniper
